PHILIP MP2/X2 Monitor Main Board PN M3002-26450
Product Details:
| Place of Origin: | ORIGINAL |
| Brand Name: | PHILIP |
| Model Number: | M3002-26450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | PAPER CARTON PACKAGE |
| Delivery Time: | 1-3 BUSINESS DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20 |
|
Detail Information |
|||
| STOCKS: | AVAILABLE | WARRANTY: | 6 MONTHS |
|---|---|---|---|
| CONDITION: | GOOD | PACKAGE: | CARTON BOX |
Product Description
-

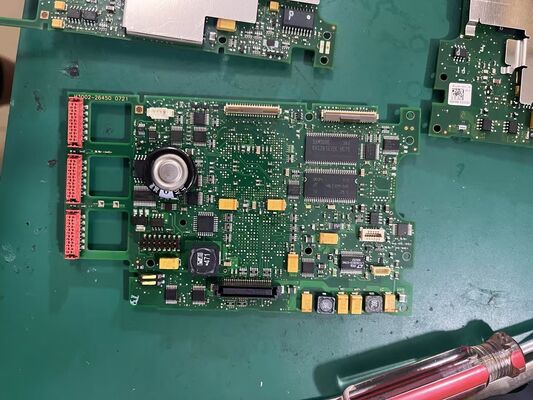

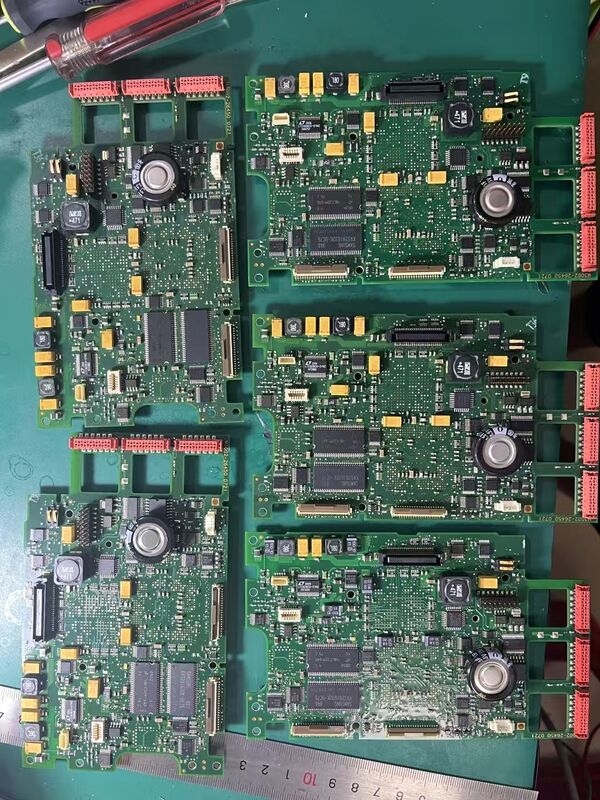

PHILIP MP2/X2 Monitor Main Board PN M3002-26450
-
-
Part role: Main circuit board (system board) for IntelliVue MP2/X2 host monitors; handles system processing, power distribution, display drive, and interface aggregation. Not a measurement module, not the power supply board, not the keypad board.
-
OEM identification: PN M3002-26450 (Philip uses this PN as REF-equivalent in the service system). Family siblings: M3002-68550 (Version 1, early units), M3002-26470, etc.
-
Compatible hosts:
-
IntelliVue MP2 — M8102A
-
IntelliVue X2 — M8002A (used standalone as transport monitor or as MMS multi-measurement module)
-
-
Serial-number cutoff: M3002-68550 fits early units with SN < DE315XXXXX; M3002-26450 is the later-build version, typically SN DE315xxxxx and above. Verify monitor serial number and software revision before swap — versions are not blindly intercompatible.
-
Power architecture (per Service Guide): Power board steps MSL DC input 36–60 V down to 16 V DC for the main board; the main board then derives multiple internal rails. RTC and buffered RAM are backed by 3.6 V DC (sourced from system power or internal battery).
-
On-board functions:
-
3.5" TFT touchscreen driver (QVGA 320×240, up to 3 live waveforms)
-
Aggregation of built-in measurement data (ECG/Resp/SpO₂/NBP; optional CO₂/IBP/Temp/12-lead)
-
Touch + hard-key input handling, alarm logic, trend buffering
-
Wired LAN (Philip Clinical Network) + optional 802.11 bedside adapter + SRR (Short Range Radio)
-
Internal rechargeable battery charge/discharge control signaling (cell itself resides in battery bay)
-
-
Key interfaces/connectors: MSL connector, display flex cable, touch controller, power-board interconnect, built-in parameter bus, wireless module socket, SRR antenna feed, RTC backup cell holder
-
Safety/classification: Non-patient-contact logic board; CF-type classification comes from the measurement front-end. ESD-sensitive medical accessory.
-
Physical: No standalone dimensions published (installed OEM part); refurb/repair shipping weight class ~0.3–0.5 kg with ESD packaging.
-
Failure mapping: Service Guide "Check Main Board 2" INOP points to this board (or second main board) anomaly.
