PN: M8067-66401 Philip MP40 MP50 BATTERY BOARD
Product Details:
| Place of Origin: | ORIGINAL |
| Brand Name: | PHILIP |
| Model Number: | M8067-66401 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation, pls contact me |
| Packaging Details: | Carton box |
| Delivery Time: | Within 1-2 working days after the payment was confirmed |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10 |
|
Detail Information |
|||
| PN: | M8067-66401 | WARRANTY: | 6 MONTHS |
|---|---|---|---|
| CONDITION: | GOOD | PACKAGE: | CARTON |
| Highlight: | Philip MP40 battery board,Philip MP50 monitor battery,Patient monitor replacement battery board |
||
Product Description
PN: M8067-66401 Philip MP40 MP50 BATTERY BOARD
M8067-66401 (MP40/MP50 Battery Control Board)
Basic Information
- Part Number: M8067-66401 (equivalent: M8067-69501, 453563499201, M8003-68401, 453563499281)
- Applicable Models: IntelliVue MP40 (M8003A), MP50 (M8004A) Patient Monitor
- Function: Original battery charge/discharge management, protection & communication board (for M4605A Li-ion battery)
- Type: Medical-grade PCB assembly
Electrical Specifications
- Input Voltage: DC 14V (main power bus)
- Battery Rated Voltage: 10.8V (6-cell Li-ion)
- Charging Mode: Constant current / constant voltage (CC/CV) with trickle charge
- Protection Features: Over-voltage, over-current, over-temperature, reverse-polarity protection
- Discharge Protection: Under-voltage cutoff, over-current / short circuit protection
- Communication: Bi-directional with mainboard (battery SOC, voltage, current, temperature & fault reporting)
- Max Output Power: 80W
Key Features
- Battery Monitoring: Real-time voltage, current, temperature, SOC tracking
- Smart Charging: Optimized charging curve for M4605A to extend battery life
- Seamless Power Switch: Instant AC-to-battery transfer during mains failure
- Diagnostics & Protection: Shuts down charge/discharge on fault and reports error codes
Physical & Compatibility

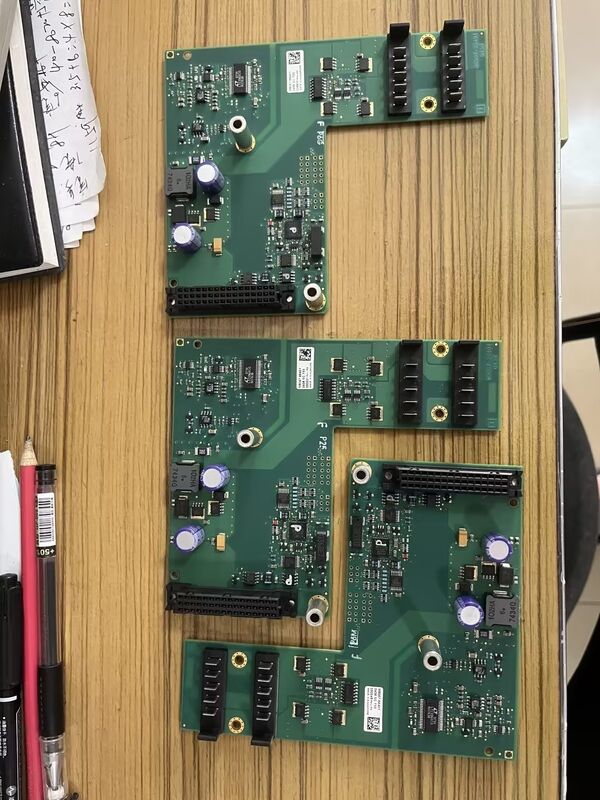

- Dimensions: Approx. 120 × 80 × 15 mm (L-shaped)
- Weight: ~150 g
- Compatibility: Only for MP40/MP50 (not interchangeable with MP20/30 battery board M8067-66461)
