GOLDWAY G60 Mainboard P/N 453564288752 for Electronic Device Integration

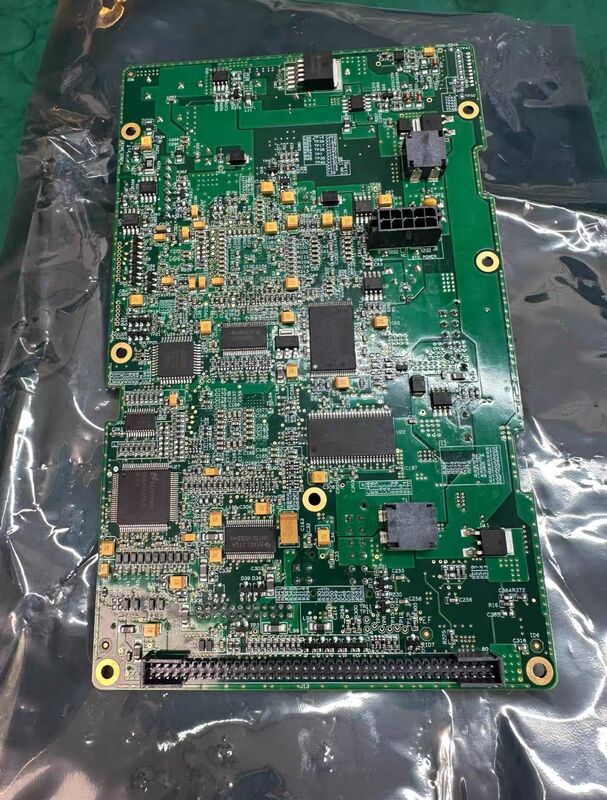

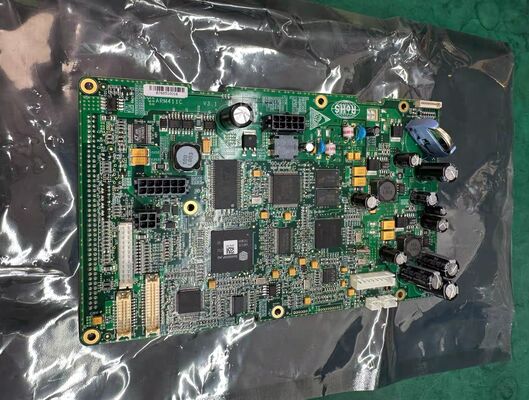

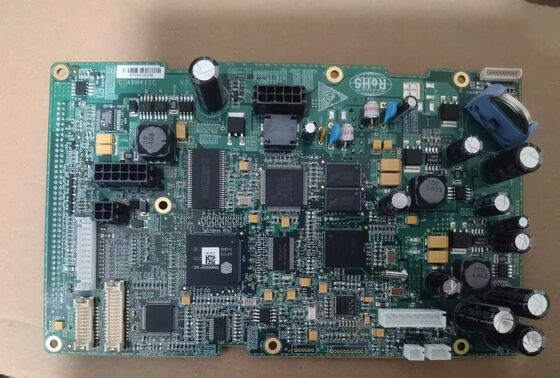

 GOLDWAY G60 Mainboard P/N 453564288752

1. Core Identification & Basic Info

• Model:  G60 Mainboard (Philip Goldway)
• Part Number (P/N): 453564288752 (Original Mainboard)
• Category: Medical-Grade Patient Monitor Main Circuit Board
• Compatibility:  GOLDWAY G60 Modular Bedside Patient Monitor
• Dimensions: Approx. 14 × 10 × 8 cm
• Net Weight: 0.65 kg
• Board Type: Multi-layer PCB, Modular Expansion Design

2. Electrical & Power Specifications

• Power Input Interface: Integrated with Host Power Module, Input: 100–240 VAC, 50/60 Hz, 1.5 A
• Onboard Power Output: Stable DC Output for Modules & Peripherals (12V, 5V, 3.3V)
• Power Management: Over-voltage, Over-current, Short-circuit & ESD Protection
• Standby Power Consumption: < 5 W

3. Communication & Expansion Interfaces

• Network Interface: 1× Gigabit Ethernet (LAN) for HL7 Protocol, Central Monitoring System (UT4800) & Bed-to-Bed Networking
• Peripheral Interfaces: 2× USB 2.0, 1× VGA (External Display Output), 1× Nurse Call Port, 1× RS232 Serial Port
• Module Expansion Slots: 5× Dedicated Modular Slots for Plug-and-Play Parameter Modules (ECG/SpO₂/NIBP/IBP/etCO₂/12-Lead ECG/CO/Multigas)
• Alarm Interface: Integrated Visual/Audible Alarm Control Circuit

4. Data Storage & Processing

• Onboard Memory: 8 GB Flash Storage + 2 GB DDR3 RAM
• Trend Data Storage: Up to 2400 Hours of Multi-Parameter Trend Data
• Waveform Storage: 240 Minutes Full-Disclosure ECG Waveform Recording
• Alarm Event Log: Stores up to 500 Alarm Events & User Operation Logs
• Real-Time Processing: High-Speed MCU for ECG/Resp/SpO₂/NIBP Signal Processing & Analysis

5. Supported Monitoring Parameters & Performance

• Standard Parameters Supported:
  • ECG (3/5-Lead, 12-Lead Optional): ST Segment Analysis, Arrhythmia Detection, Pacemaker Recognition, HR Range 15–300 bpm, Accuracy ±1% or ±2 bpm
  • SpO₂ (Philip FAST-SpO₂): Range 0–100%, Accuracy ±2% (70–100% range), PR 20–250 bpm
  • NIBP: Oscillometric Method, Accuracy ±5 mmHg (±0.7 kPa), Adult/Pediatric/Neonatal Modes
  • RESP: Impedance Method, RR 5–120 bpm, Accuracy ±2 bpm
  • Dual-Channel TEMP: Range 0–50°C, Accuracy ±0.1°C

• Optional Extended Parameters: Dual IBP, etCO₂ (Microstream), Cardiac Output (CO), Multigas Monitoring

6. Compliance & Safety Standards

• Safety Certification: IEC 60601-1:2005+AMD1:2012, IEC 60601-1-2:2014
• Quality Management: ISO 9001, ISO 13485, CE (MDR 2017/745), FDA Compliant
• EMC Compliance: IEC 60601-1-2:2014 (Electromagnetic Immunity & Emission)
• Environmental Rating: IPX1 (Drip-Proof), Operating Temp 10–35°C, Storage Temp -20–60°C

7. Maintenance & Service Notes

• Warranty: 90 Days for New/Original Unit
• Replacement Requirement: Must Match P/N 453564288752 for Full Compatibility
• Calibration: Re-calibrate All Parameter Modules After Mainboard Replacement
• ESD Protection: Strict Anti-ESD Handling Required During Installation/Repair
• Storage: Dry, Dust-Free Environment (Relative Humidity 30–75%)
