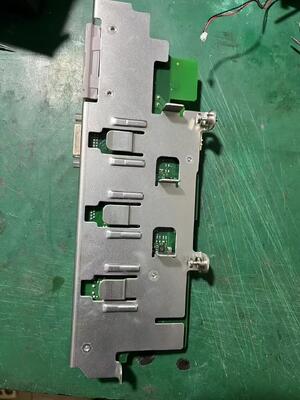

Philip MX600 MX700 MX800 Land Card Video Card Connector Board
Product Details:
| Place of Origin: | ORIGINAL |
| Brand Name: | PHILIP |
| Model Number: | MX600 MX700 MX800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation, pls contact me |
| Packaging Details: | Carton box |
| Delivery Time: | Within 1-2 working days after the payment was confirmed |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Model: | MX600 MX700 MX800 | Condition: | Good |
|---|---|---|---|
| Warranty: | 90 DAYS | Stocks: | Available |
| Price: | Negotiable | ||
| Highlight: | Video Card Connector Board,MX700 Land Card,MX800 Land Card |
||
Product Description
philip MX600 MX700 MX800 land card video card connector board
Philip IntelliVue MX600 / MX700 / MX800
Network Card, Video Card & Interface Board Parameters (English Version)
1. Wired LAN Card (Ethernet Board)
Part Number: MSL LAN Circuit Board (453563499121)
Standard: 10/100Base-TX (IEEE 802.3), RJ45 (8P8C), medical-grade isolated (basic insulation, 1500V test voltage)
Speed: 10/100 Mbps auto-negotiation
Protocols: TCP/IP, HL7, DICOM, IntelliVue clinical network
Power: 3.3V on-board
Environment: Operating 0–40°C, Storage –20–60°C, 10–95% RH (non-condensing)
Model Differences:
MX600: 1 × isolated RJ45 LAN port
MX700: 1 × isolated RJ45 LAN port; optional 2nd isolated LAN via iPC
MX800: 2 × isolated RJ45 LAN ports (monitoring network + hospital intranet, physically separated)
2. Wireless LAN Card (WiFi Module)
Part Number: Internal 802.11 a/b/g Adapter (Option J20/J35), WMTS telemetry module (optional)
Frequency Bands: 2.4 GHz (802.11b/g) + 5 GHz (802.11a), ISM bands
Max Data Rate: 54 Mbps (802.11a/g), 11 Mbps (802.11b)
Security: WPA/WPA2-PSK, WPA2 Enterprise
Protocols: IntelliVue wireless monitoring network, WMTS medical telemetry
Availability: Optional internal module for MX600/MX700/MX800 (not standard)
3. Video Output Card (DVI Display Board)
Part Number: DVI-I Video Output Board (optional expansion)
Interface: DVI-I (single-link, digital DVI + analog VGA compatible)
Supported Resolutions: 1920×1080@60Hz (1080p), 1280×768, 1024×768, 800×600
Function: External secondary monitor output, dual-screen display (main monitor + extended display)
Availability: Optional for MX600/MX700/MX800 (no standard independent video output)

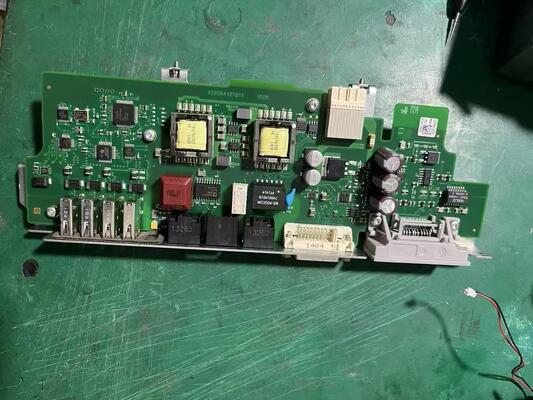

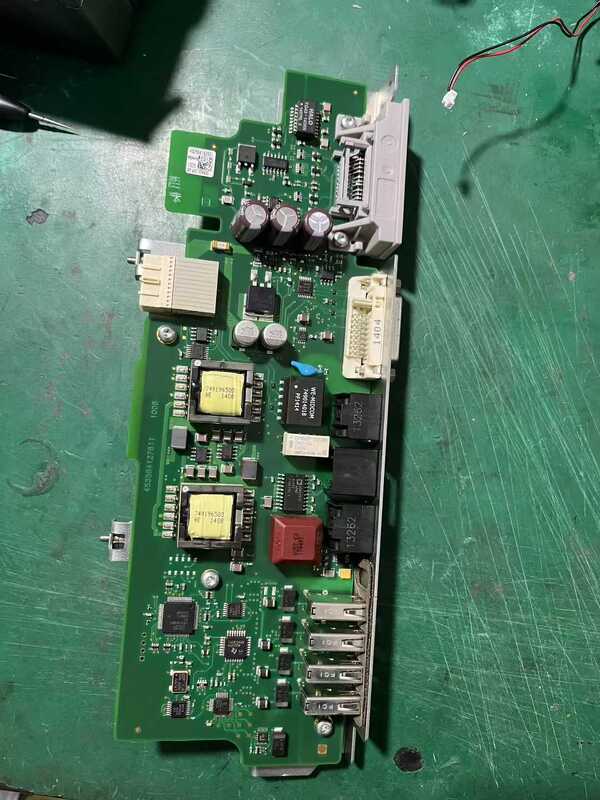

4. Main Interface Board (IO Board, Integrated)
Part Number: Main Interface Board (453563xxxx series)
Integrated Interfaces:
LAN: 1–2 × RJ45 (as above)
USB: MX600 (3 × USB 2.0), MX700 (4 × USB 2.0), MX800 (5 × USB 2.0, Type-A full-speed)
Serial: 1 × RS232 (RJ45-style), for peripheral/data communication
Video: DVI-I (optional), LVDS for main display
Measurement: MSL dedicated port (ODU), ECG sync output, Nurse Call (RJ11)
Others: SRR short-range wireless, WMTS telemetry interface
5. Model-to-Model Parameter Comparison Table
Parameter MX600 MX700 MX800
Wired LAN 1 × 10/100 Mbps isolated RJ45 1 × 10/100 Mbps isolated RJ45; optional 2nd LAN via iPC 2 × 10/100 Mbps isolated RJ45 (dual isolated)
Wireless LAN Optional 802.11a/b/g, WMTS Optional 802.11a/b/g, WMTS Optional 802.11a/b/g, WMTS
Video Output Optional DVI-I, up to 1080p60 Optional DVI-I, up to 1080p60 Optional DVI-I, up to 1080p60; multi-display via iPC
Interface Board (IO) USB×3, RS232×1, MSL, ECG, Nurse Call USB×4, RS232×1, MSL, ECG, Nurse Call USB×5, RS232×1, MSL, ECG, dual Nurse Call, SRR
iPC (Integrated PC) Not available Optional Intel Core 2 Duo, 4GB RAM, 160GB HDD Standard iPC: Intel Core 2 Duo SP9300/SP9400, 4GB RAM, 160GB HDD
Main Display 12.1" LCD, 1024×768 15" LCD, 1280×768 (touch) 19" Widescreen LCD, 1440×900 (touch)
Key Notes
All boards are medical-grade proprietary, not compatible with standard PC PCIe cards.
LAN ports comply with IEC 60601-1 for patient safety isolation.
Video output is for monitoring signal extension only, no 3D/gaming acceleration.
Wireless modules prioritize low-latency, high-reliability for clinical data transmission.
