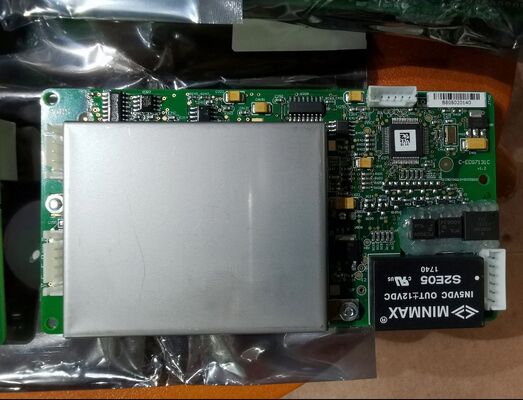

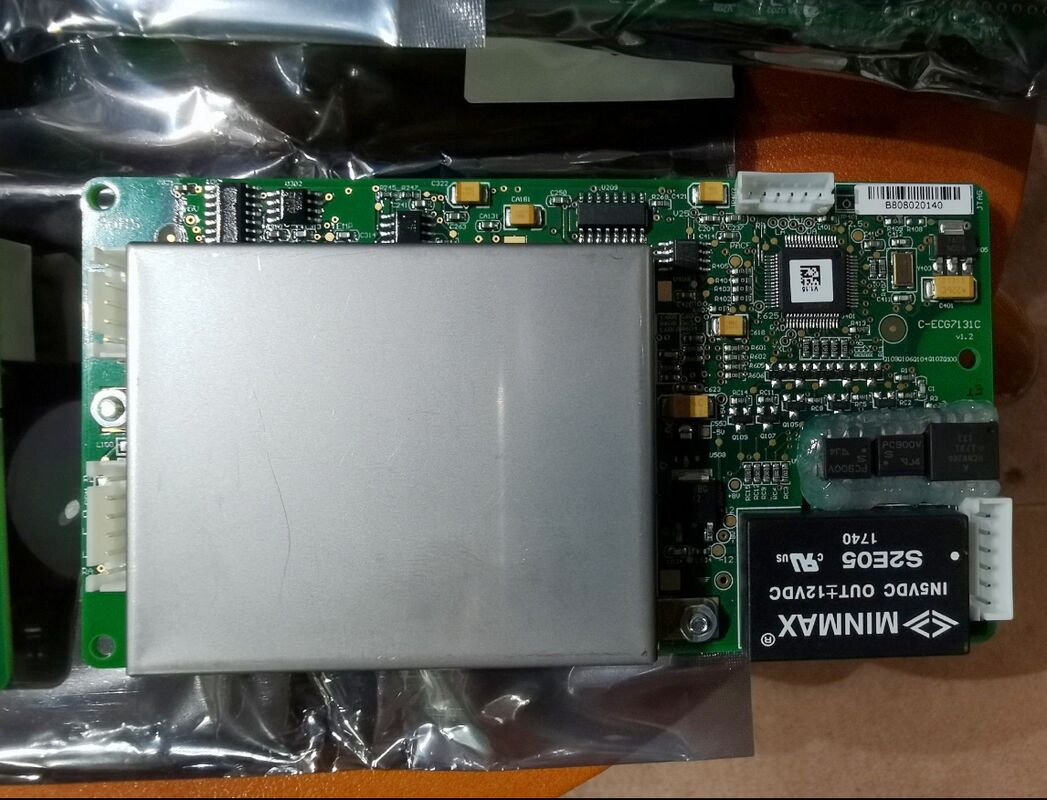

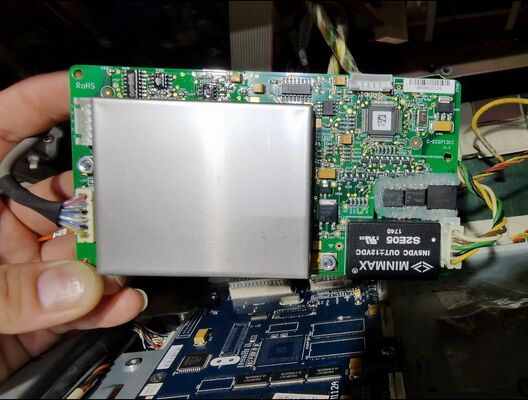

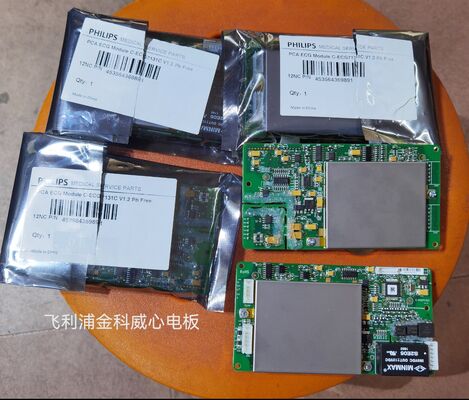

Philip GOLDWAY G30 G40 PN 45356436891 ECG BOARD

Philip GOLDWAY G30 G40 PN:45356436891 ECG BOARD

oldway G30 / G40 ECG Board (ECG Module) English Technical Specifications

1. Basic ECG Configuration

• Lead System: 3-lead / 5-lead selectable
  • 3-lead: I, II, III
  • 5-lead: I, II, III, aVR, aVL, aVF, V (simultaneous 7-lead display supported)

• ECG Modes: Monitoring / Diagnostic / Surgery modes selectable
• Input Impedance: ≥100 MΩ (common mode)
• Common Mode Rejection Ratio (CMRR): ≥100 dB (50/60 Hz)
• Defibrillation Protection: Defibrillator-proof, withstands 360J biphasic defibrillation; automatic recovery post-shock
• Electrosurgical Interference Suppression: Built-in anti-ESU filter

2. Heart Rate (HR) Measurement

• Measurement Range:
  • Adult/Pediatric: 15–300 bpm
  • Neonatal: 15–350 bpm

• Accuracy: ±5 bpm or ±1% of reading, whichever is greater
• Resolution: 1 bpm
• Alarm Limits: Adjustable bradycardia/tachycardia thresholds

3. ECG Waveform & Gain

• Gain Settings: ×1/4, ×1/2, ×1, ×2, ×4, Auto (automatic gain adjustment)
• Waveform Speed (Sweep Speed): 6.25, 12.5, 25, 50 mm/s (selectable)
• Bandwidth:
  • Monitoring mode: 0.5–40 Hz
  • Diagnostic mode: 0.05–100 Hz
  • Surgery mode: 0.5–20 Hz (anti-interference)


4. ST Segment Analysis

• Measurement Range: -2.0 mV ~ +2.0 mV (Diagnostic mode: -0.8 ~ +0.8 mV)
• Accuracy: ±0.02 mV or ±5% of reading, whichever is greater
• Channels: 4-channel ST monitoring (V, I, II, III)

5. Arrhythmia & Pacemaker Detection

• Arrhythmia Analysis: 13 arrhythmia alarms (including PVC, Bigeminy, Trigeminy, VT, Bradycardia, Tachycardia, Missed Beat, Pause, R-on-T, etc.)
• Pacemaker Detection: Yes; detects asynchronous/synchronous pacemaker pulses, pulse width ≥0.1 ms

6. Physical & Electrical Parameters

• Board Dimensions: Approx. 145 × 100 × 20 mm (ECG module board)
• Power Supply: DC 5V ±5%, 300 mA (from monitor mainboard)
• Operating Temperature: 0–40 °C
• Storage Temperature: -20–60 °C
• Humidity: 30%–85% RH (non-condensing)

7. Compliance Standards

• IEC 60601-1, IEC 60601-2-27 (ECG safety)
• EN 60601-1-2 (EMC)

Key Difference: G30 vs G40 ECG Board

• G30: 10.4" display, basic ECG/arrhythmia/ST, no optional CO₂/IBP expansion (ECG board identical core specs)
• G40: 12.1" display, same ECG core parameters, supports optional dual IBP/CO₂ modules (ECG board functionally identical to G30)
