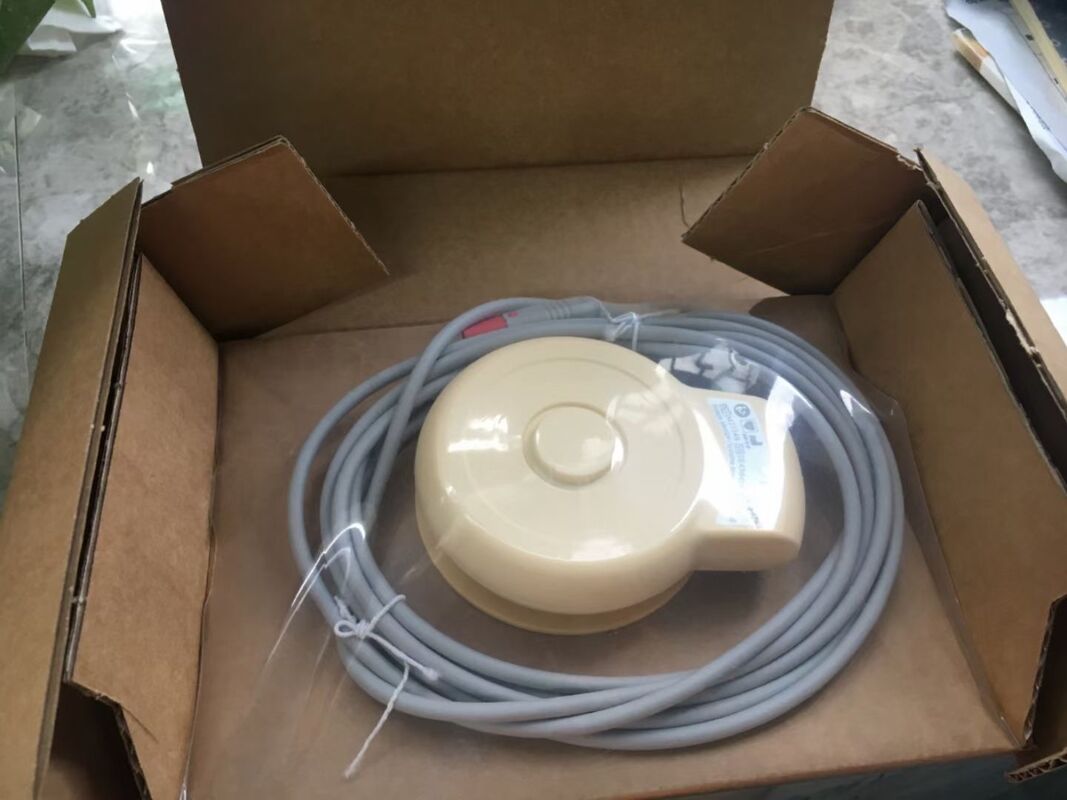

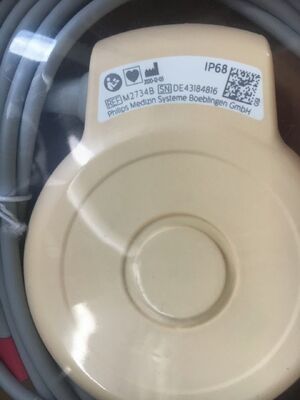

Fetal FM SERIES M2734B TOCO PROBE ORIGINAL NEW
Product Details:
| Place of Origin: | GERMANY |
| Brand Name: | PHILIP |
| Model Number: | M2734B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation, pls contact me |
| Packaging Details: | Carton box |
| Delivery Time: | Within 3 working days after the payment was confirmed |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10 |
|
Detail Information |
|||
| Services: | Repairing And Maintenance / Selling | Condition: | Both Orginal Used And New Are In Stock |
|---|---|---|---|
| Warranty: | 90 Days | Product Name: | M2734B Ultrasound Probe |
| Use For: | FM20 FM30 Fetal Monitor | ||
| Highlight: | Fetal FM Series toco probe,M2734B medical equipment probe,Original new toco transducer |
||
Product Description
Philip M2734B TOCO MP Transducer (TOCO Probe) – Full English Specifications
Basic Information
- Model: M2734B (Avalon TOCO MP Transducer)
- Type: Fetal TOCO (Tocodynamometer) + Maternal Pulse Transducer (Wired)
- Manufacturer: Philip Healthcare
- Part Number: HC989803170601
- Compatibility: Philip Avalon FM20, FM30, FM40, FM50 Fetal Monitors; IntelliSpace Perinatal Systems
- Certifications: CE, FDA, ISO 13485
- Latex‑Free: Yes
Core Measurement Parameters
-
Uterine Contraction (TOCO) Measurement
- Measurement Principle: Pressure‑sensitive tocodynamometry
- Frequency Range: 0.5 – 3.5 Hz
- Function: Detects and records maternal uterine contraction intensity & frequency
-
Maternal Pulse Measurement
- Pulse Rate Range: 30 – 240 bpm
- Accuracy: ±2 bpm (typical)
- Function: Simultaneous maternal pulse monitoring
Physical & Mechanical Specifications
- Dimensions: 83 mm (3.27 in) (probe head)
- Cable Length: 3.0 m (10 ft)
- Weight: 0.2 kg (0.5 lb)
- Connector: 8‑pin circular medical connector (stable, secure connection)
- Material: Medical‑grade TPU housing, non‑irritating, latex‑free
- Color: Gray
- Mounting: Belt‑mount or button‑mount (with adapter)
Environmental & Protection Ratings
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Operating Humidity: ≤95% RH (non‑condensing) @ 40°C
- Operating Altitude: -500 m – 3000 m (-1640 ft – 9840 ft)
- Storage/Transport Temperature: -20°C – 60°C (-4°F – 140°F)
- Storage/Transport Humidity: ≤90% RH (non‑condensing) @ 60°C
- Storage/Transport Altitude: -500 m – 13100 m (-1640 ft – 43000 ft)
- Water Ingress Protection: IP68 (submersible up to 1 m depth for 5 hours)
- Electrical Safety: Type CF (isolated, patient‑safe)
- Shock/Vibration: Complies with IEC 60601‑1 medical equipment standards
- EMC: Complies with IEC/EN 60601‑1‑2
Additional Features
- Transducer ID: Optical Finder LED (for easy identification/connection)
- Reusable & Disinfectable: Compatible with standard hospital cleaning/disinfection agents
- Warranty: 12 months (original Philip standard)
