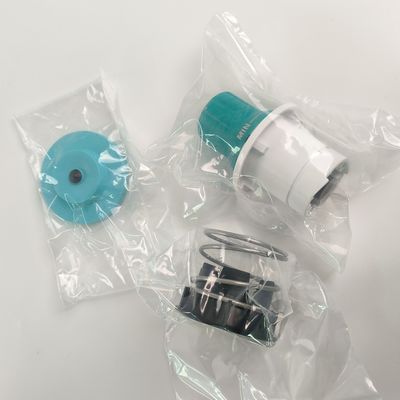

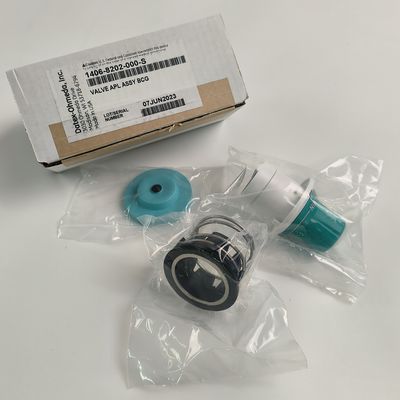

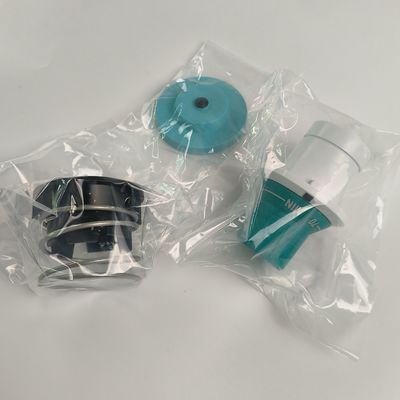

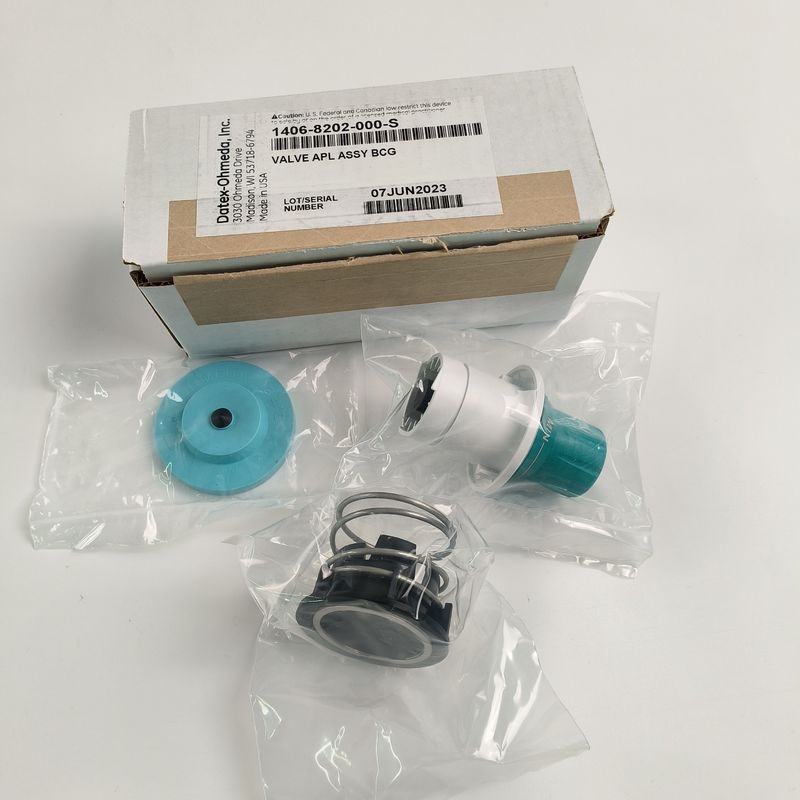

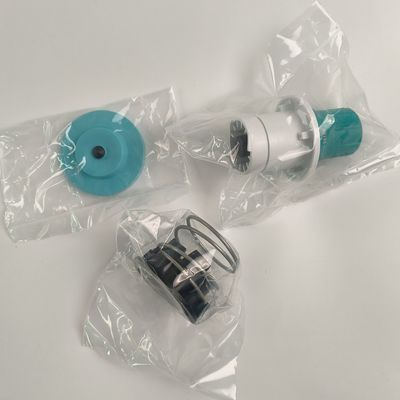

VALVE APL ASSY BCG PN1406-8202-000-S GE Ohmeda Aespire Anesthesia Machine Aestiva Model APL Valve, Without Base Version
Product Details:
| Place of Origin: | ORIGINAL |
| Brand Name: | GE |
| Model Number: | VALVE APL ASSY BCG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation, pls contact me |
| Packaging Details: | Carton box |
| Delivery Time: | Within 3 working days after the payment was confirmed |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100 PCS |
|
Detail Information |
|||
| Other Nam: | VALVE APL ASSY BCG | Quality Control: | Strict |
|---|---|---|---|
| Storage: | Room Temperature | Warranty Period: | 90 Days |
Product Description
GE Ohmeda Aespire PN: 1406-8202-000-S (APL Valve Assembly BCG) – Full English Technical Parameters
1. Basic Part Information
- OEM Part Number: 1406-8202-000-S
- Equivalent Part: 1406-8202-000
- Product Name: Adjustable Pressure Limiting (APL) Valve Assembly (BCG Breathing Circuit Gas)
- Manufacturer: GE Healthcare (Datex‑Ohmeda)
- Compatible Systems: Aespire 7900, Aespire View, Aestiva 5 / 7100 Anesthesia Machines
- Function: User‑adjustable pressure relief valve for breathing circuit; sets manual ventilation pressure limit; vents excess gas to Anesthetic Gas Scavenging System (AGSS)
2. Core Performance Specifications
- Pressure Adjustment Range: 0 to 70 cm H₂O (continuous manual adjustment)
- Relief Accuracy: ±2 cm H₂O at set pressure
- Flow Capacity: Up to 75 L/min (exhaust to AGSS)
- Valve Type: Diaphragm‑actuated, positive pressure relief only
- AGSS Connection: 30 mm male conical swivel fitting (rear‑mounted)
- Breathing Circuit Interface: 22 mm ISO standard conical port (male/female)
- Safety Features: Integrated positive/negative pressure relief protection for breathing circuit
3. Mechanical & Material Specifications
- Dimensions: Approx. 85 × 65 × 55 mm (L × W × H)
- Weight: Approx. 0.28 kg
- Body Material: Medical‑grade reinforced polycarbonate (PC)
- Diaphragm & Seals: EPDM / Silicone (medical‑grade, autoclavable, latex‑free)
- Fasteners: Stainless steel (SST 316) hardware
- Mounting: Direct fit to main breathing manifold assembly, tool‑less thumb‑wheel adjustment
4. Environmental & Compliance
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Storage Temperature: -20°C to 60°C (-4°F to 144°F)
- Humidity: 10%–95% RH (non‑condensing)
- Cleaning: Compatible with standard hospital disinfection (autoclave up to 134°C)
- Regulatory: CE, FDA Class II medical device, ISO 5358‑1 compliant
5. Key Features
- Precision manual pressure setting via rotary thumb wheel
- Direct exhaust to AGSS to prevent OR pollution
- Integrated circuit protection against over‑/under‑pressure
- Durable, low‑maintenance design for clinical use
- Direct replacement, no calibration required post‑installation
